¶ What's in the Box？

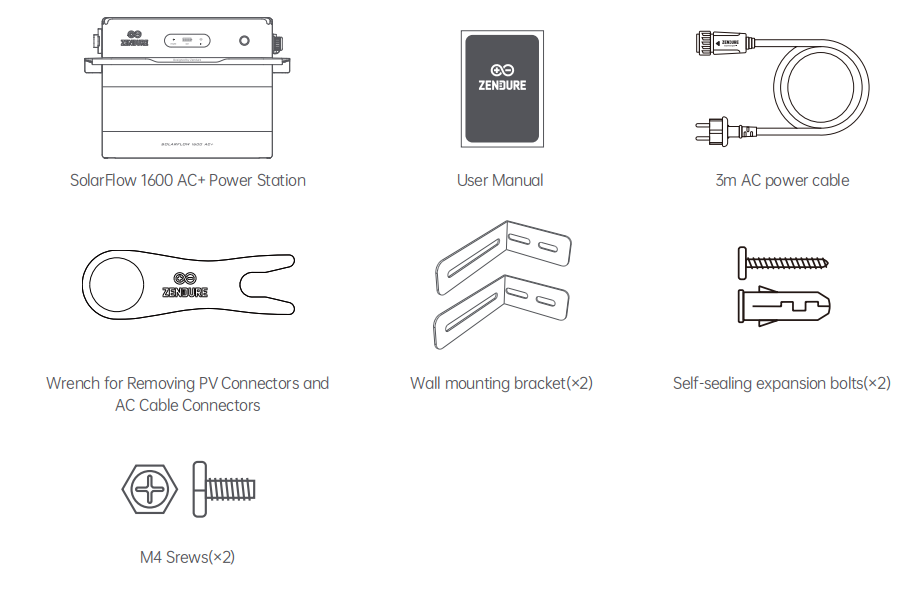

¶ Packing list
| Picture | Name | Description |
 |

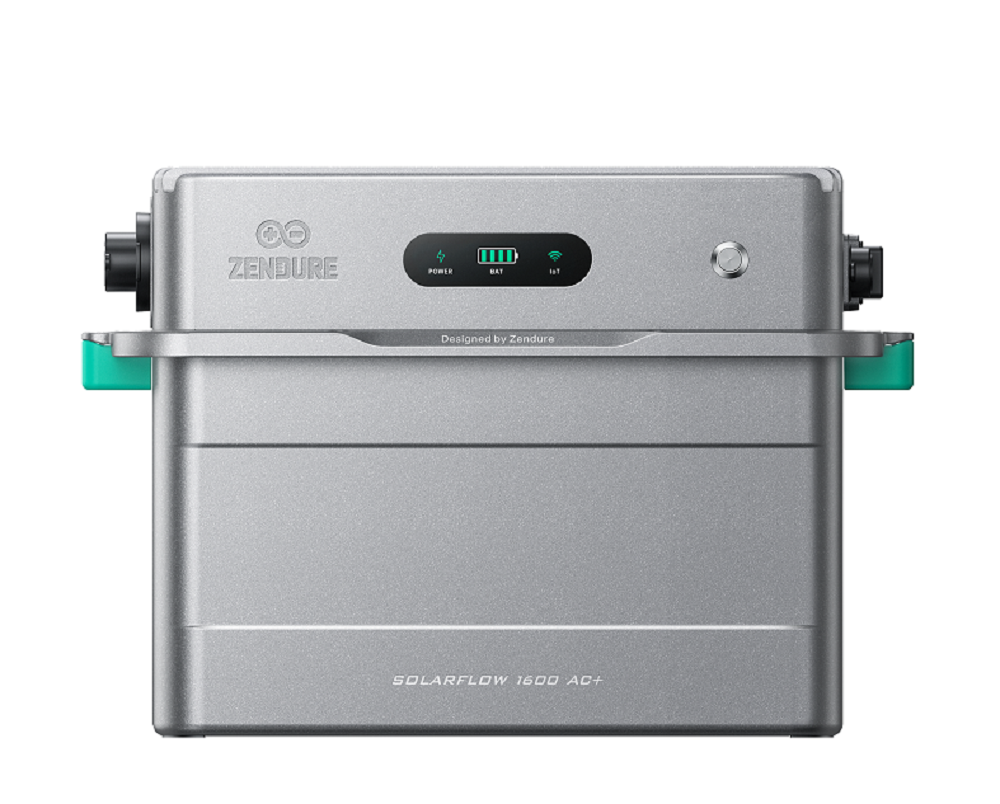

SolarFlow 1600 AC+ (Main Unit) | An integrated AC-coupled power management system featuring a 1600W bi-directional AC-DC converter to coordinate surplus energy capture from existing solar arrays, storage, and discharge. During installation, ensure the unit is placed in a ventilated environment to facilitate passive heat dissipation through its IP65 aluminium chassis. |
 |
User Manual | Technical documentation containing detailed setup instructions, wiring diagrams, and safety protocols for the SolarFlow 1600 AC+ system. Thoroughly review all safety warnings and the app activation procedure before connecting any PV modules or battery units. |
 |
3m 16A AC Power Cable | A high-capacity cable that facilitates bi-directional power exchange between the main unit and the household AC grid, supporting up to 2400W. Ensure the plug is fully seated in a 16A-rated socket and inspect the insulation for damage before connection. |
 |
Self-sealing expansion bolts |
Wall Mounting Kit Hardware designed to provide structural support for vertical mounting of the main unit to save space and secure the device. Verify the load-bearing capacity of the wall and use a level to ensure brackets are perfectly horizontal for proper alignment. |
 |
M4 Srews | |
 |
Wall mounting bracket | |
 |
Wrench for Connector Removal | A specialised tool designed for the safe disconnection of solar (MC4) and AC connectors by releasing their mechanical locking mechanisms. Use this tool only on designated connectors to avoid compromising waterproof seals or damaging the locking tabs. |
